Φ300mm high speed bunching machine for super fine copper wire cable conductor making machine wire buncher

Name: Φ300mm high speed bunching machine for super fine copper wire cable conductor making machine wire buncher
Brand: Wiremac
Price: 5000 USD

Cheap Φ300mm high speed bunching machine for super fine copper wire cable conductor making machine wire buncher for sale

Brand Name : Wiremac

Model Number : PY-Φ300mm

Certification : /

Place of Origin : China

MOQ : 1

Price : USD5000-10000 Unit Price

Payment Terms : T/T

Supply Ability : 50 sets per month

Delivery Time : 45 working days

Packaging Details : Machine dimension:L1970mm*W920mm*H1030mm

Inlet wire dia : Φ0.03-Φ0.10mm..

Bunched wire size : 0.035-0.45mm²..

Take up spool size : Φ300mm..

Operation direction : “S” or “Z”..

Max.rotating speed : Max.3000RPM/min..

Motor : 3HP..

Color : Can be customized..

Contact Now

Application

Suitable for copper wire stranding of Power cable,Lan cable,Automatic cable,Electrical wire,Date cable,Earphone cable etc.Φ300mm high speed bunching machine for super fine copper wire cable conductor making machine wire buncher

Specification

1.Inlet copper wire diameter:Φ0.03mm-Φ0.10mm

2.Stranded wire size:0.035-0.45mm²

3.Lay length: 1.27mm-12.55mm(adjustable according to customer requirement)

4.Operation directions:“S” or “Z”

5.Take up spool size:Φ300mm

6.Max.rotating speed:Max.3000RPM/min

7.Motor:3 HP

8.Tension control:By mechanism friction

9.Protection:Automatically brakes/stops

1)Wire inside and outside is broken

2) The preset length is arrived

10.Brake way:Electromagnetic brake

11.Traversing method:Rolling wires with ring drive units, row pitch and breadth are adjustable

12.Operation type:push button type

13.Bobbin shifting:Manual hydraulic lifting

Pls feel free to contact us for more details,pics and videos.

Φ300mm high speed bunching machine for super fine copper wire cable conductor making machine wire buncherΦ300mm high speed bunching machine for super fine copper wire cable conductor making machine wire buncherΦ300mm high speed bunching machine for super fine copper wire cable conductor making machine wire buncherΦ300mm high speed bunching machine for super fine copper wire cable conductor making machine wire buncher

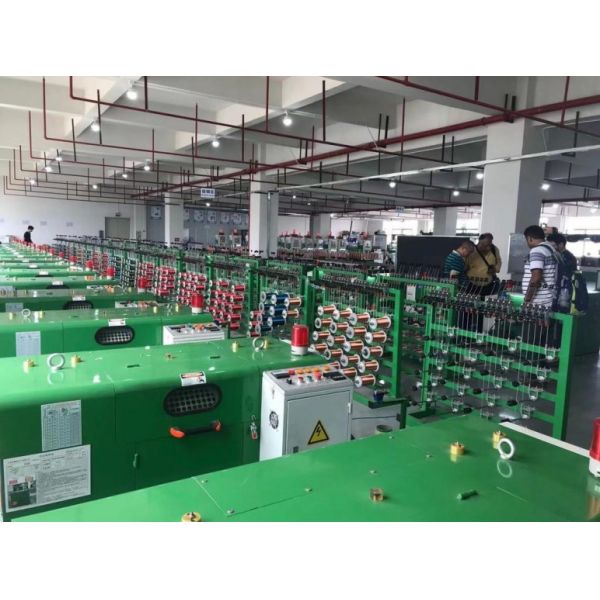

Φ300mm high speed bunching machine for super fine copper wire cable conductor making machine wire buncher Images
